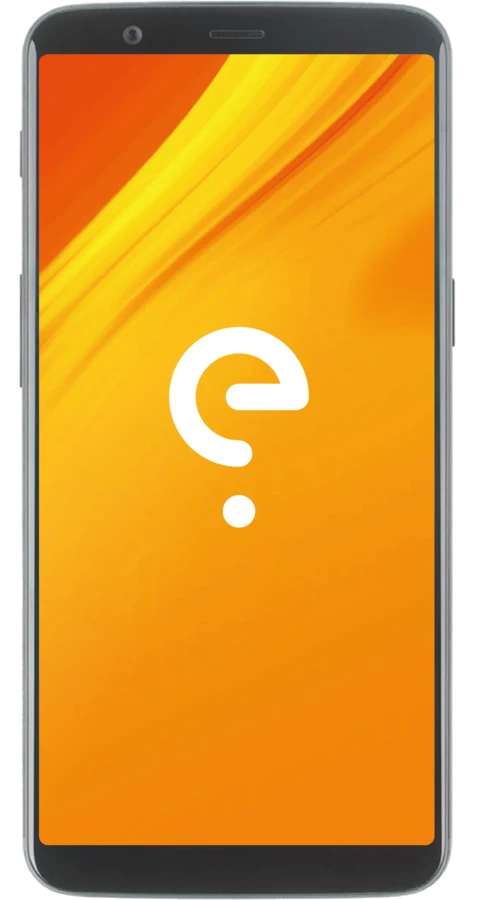

OnePlus 5T
"dumpling"


Install
To install /e/OS on the 5T - "dumpling" click here
Upgrade
To upgrade the 5T - "dumpling" to the Q build of /e/OS
click here
Build
Want to build /e/OS for the 5T - dumpling ? Click here
What's not (yet) working ?
Please find issues opened by users on this device here
You can also track the progress of the issue here.
Have you found a bug?
If you have found a bug please report it here
Have some suggestions to improve the installation process?
Please send us an email here
Is your model not supported?
Contact us to Request support for your device
The more the users requesting for a device / model
the better the chances of it getting on the officially supported list !!!
Tip: If you find an issue with this installation document or to suggest any improvements , Please add your suggestions to this topic on our community forum
dumpling

Device Details

Released
2017

SoC
Qualcomm MSM8998 Snapdragon 835
RAM
6/8 GB
CPU
Octa-core Kryo 280
4 x 2.45 GHz + 4 x 1.9 GHz
Architecture
arm64
GPU
Adreno 540
Network
  • 2G bands: 850 900 1800 1900 MHz GSM, BC0 CDMA EVDO
  • 3G bands: 850 900 1700(AWS) 1900 2100 MHz HSDPA
  • 4G bands: 1 2 4 5 7 8 12 17 18 19 20
Storage
64/128 GB UFS 2.1 2-LANE
Screen
1080x2160 (401 PPI)
Optic AMOLED
Device Tree
android_device_oneplus_dumpling
Bluetooth
5 with A2DP
Wi-Fi
802.11 a/b/g/n/ac, 2.4G/5G, Wi-Fi Direct, DLNA, Hotspot
Peripherals
  • Dual SIM
  • Fingerprint reader
  • Accelerometer
  • Gyroscope
  • Proximity sensor
  • Compass
  • NFC
  • Hall effect sensor
  • Sensor hub
  • Light sensor
Camera(s)
No of Cameras: 3
  • 20 MP, LED flash
  • 16 MP, LED flash
  • 16MP, No flash
Dimensions
156.1 mm (6.15 in) (h)
75.0 mm (2.95 in) (w)
7.30 mm (0.29 in) (d)
Battery
Non-removable Li-Po 3300 mAh
Boot Modes
Recovery :
With the device powered off, hold Volume Down + Power. Download :
With the device powered off, hold Volume Up + Power.

/e/ OS Information


Maintainers
/e/OS Build Team
Versions
Q
Build Status
dev
Disclaimer : We cannot guarantee that all the device specific information on this page is 100 % up to date or accurate. Read more
