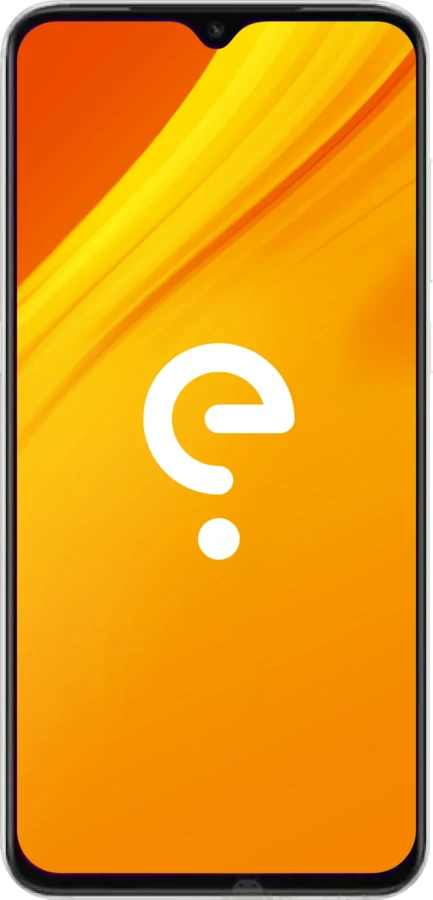

Xiaomi pyxis

Guides

Command line

For advanced users, installing /e/OS with Android platform tools.

Install

Build

Build /e/OS for yourself with your own settings.

Build

Boot Modes

Recovery

With the device powered off - hold Volume Up + Power.Keep holding both buttons until the "MI" logo appears on the screen, then release.

Download

With the device powered off - hold Volume Down + Power. Keep holding both buttons until the word "FASTBOOT" appears on the screen, then release.

Support the project

Join the testing community Report an issue about pyxis Contribute Donate

Usability

Known issue(s) 0

Mi CC 9

Apps Compatibility

Safetynet

❓

Rootbeer

✅

Bootloader relocking support

Data unavailable

See something wrong? Help us update this info.

Verified boot support

Data unavailable

See something wrong? Help us update this info.

Device details

Release

2019

SoC

Qualcomm SDM710 Snapdragon 710

RAM

6 GB

CPU

Octa-core Kryo 360
2 x 2.2 GHz + 6 x 1.7 GHz

Architecture

arm64

GPU

Qualcomm Adreno 616

Network

2G bands: GSM
2G bands: CDMA
3G bands: UMTS
4G bands: LTE

Storage

64/128 GB

SD card

Max 128 GB hybrid

Screen

6.31 in
1080x2340 ( PPI)
AMOLED (max Hz)

Device Tree

android_device_xiaomi_pyxis

Bluetooth

5 with A2DP + aptX HD

Wi-Fi

802.11 a/b/g/n/ac

Peripherals

A-GPS
Accelerometer
Compass
Dual SIM
Dual-frequency GNSS
FM radio
Fingerprint reader
BeiDou
Galileo
GLONASS
GPS
Gyroscope
IR blaster
Light sensor
NFC
Proximity sensor
USB OTG

Camera(s)

No of Cameras: 4

48 MP, Dual LED flash
8 MP (wideangle), Dual LED flash
2 MP (depth), Dual LED flash
32 MP (front), None flash

Dimensions

156.8 mm (h)
74.5 mm (w)
8.7 mm (d)

Battery

Non-removable Li-Po 4030 mAh

/e/OS Information

Maintainers

/e/OS Build Team

Build versions

U (community)

Models Supported

Models:

M1904F3BC

Other models are not supported

Disclaimer: We cannot guarantee that all the device specific information on this page is 100 % up to date or accurate. Read more.
