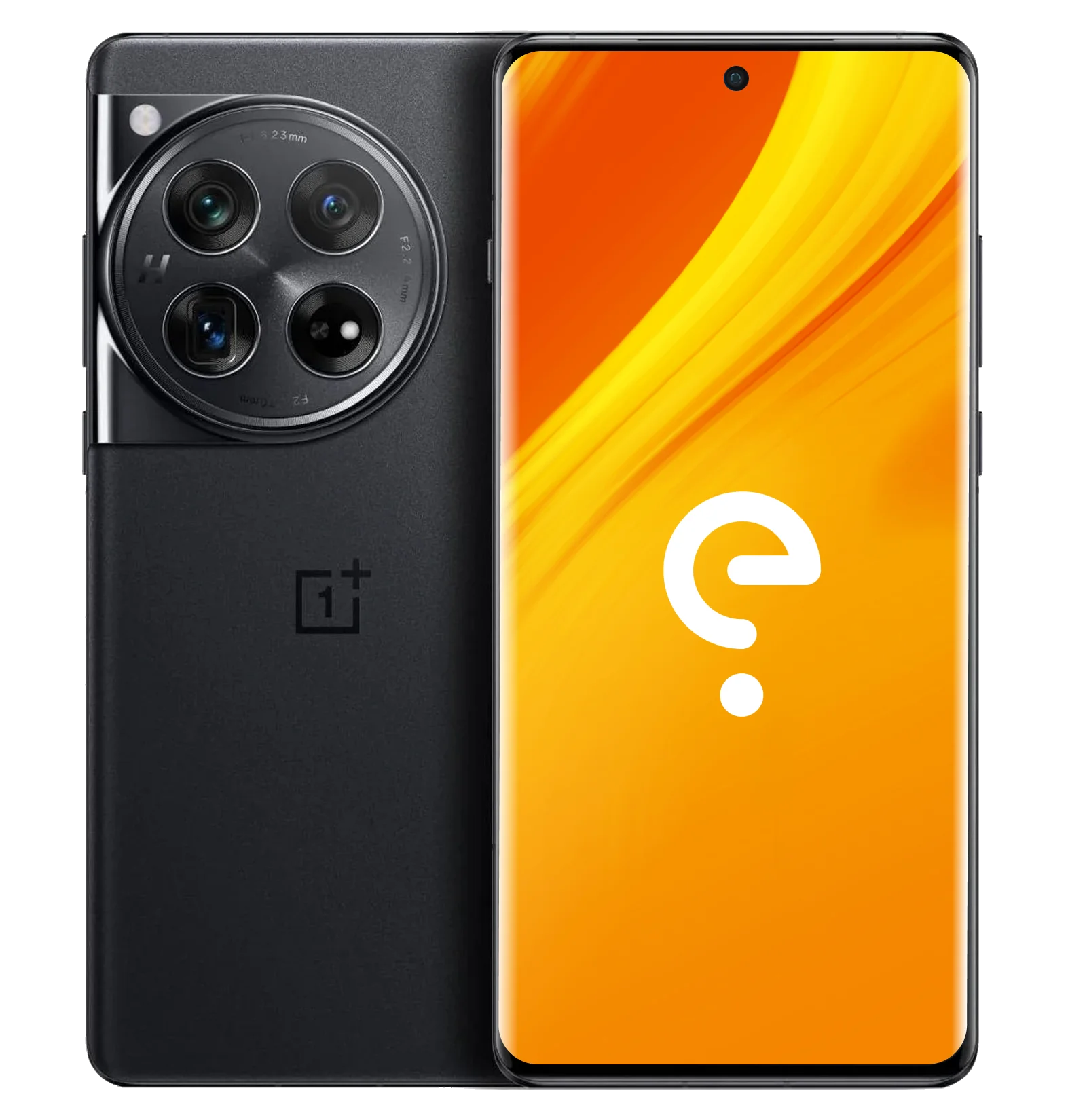

OnePlus waffle

Guides

Command line

For advanced users, installing /e/OS with Android platform tools.

Install
Build

Build /e/OS for yourself with your own settings.

Build

Boot Modes

Recovery

With the device powered off - hold Volume Down + Power

Download

With the device powered off - hold Volume Up + Volume Down + Power.

Support the project

Join the testing community Report an issue about waffle Contribute Donate

Usability

Known issue(s) 0

12

waffle

Apps Compatibility

Safetynet
✅
Rootbeer
✅

Bootloader relocking support

Data unavailable

See something wrong? Help us update this info.

Verified boot support

Data unavailable

See something wrong? Help us update this info.

Device details

Release
2023
SoC
Qualcomm SM8650 Snapdragon 8 Gen3
RAM
12/16/24 GB LPDDR5X
CPU
Octa-core Kryo
1 x 3.3 GHz + 3 x 3.2 GHz + 2 x 3.0 GHz + 2 x 2.3 GHz
Architecture
arm64
GPU
Qualcomm Adreno 750
Network
  • 2G bands: GSM
  • 3G bands: UMTS
  • 4G bands: LTE
  • 5G bands: NR
Storage
256/512/1 TB UFS4.0
SD card
–
Screen
6.82
1440x3216 ( PPI)
LTPO AMOLED (max 120 Hz)
Device Tree
android_device_oneplus_waffle
Bluetooth
5.4 with A2DP + aptX HD
Wi-Fi
802.11 a/b/g/n/ac/ax/be
Peripherals
  • A-GPS
  • Accelerometer
  • Compass
  • Dual SIM
  • Dual-frequency GNSS
  • eSIM
  • Fingerprint reader
  • BeiDou
  • Galileo
  • GLONASS
  • GPS
  • SBAS
  • QZSS
  • Gyroscope
  • Hall effect sensor
  • IR blaster
  • Light sensor
  • NFC
  • Proximity sensor
  • USB OTG
Camera(s)
No of Cameras: 4
  • 50 MP (wide), Dual LED (dual tone) flash
  • 64 MP (periscope telephoto), Dual LED (dual tone) flash
  • 48 MP (ultrawide), Dual LED (dual tone) flash
  • 32 MP, None flash
Dimensions
164.3 (h)
75.8 (w)
9.2 (d)
Battery
Non-removable Li-Po 5400 mAh

/e/OS Information

Maintainers
  • /e/OS Build Team
Build versions
  • A15 (community)
Models Supported
Models:
  • CPH2573
  • CPH2581
  • CPH2583
  • PJD110
Other models are not supported
Disclaimer: We cannot guarantee that all the device specific information on this page is 100 % up to date or accurate. Read more.
